El CWDM MUX DEMUX de 9 canales (18 ondas) de fibra única está diseñado por FIBERWDM, las ondas del lado A son: RX 1270, 1310, 1350, 1390, 1430, 1470, 1510, 1550, 1590 nm/ TX 1290, 1330, 1370, 1410, 1450, 1490, 1530, 1570, 1610 nm, y las ondas del lado B son: RX 1290, 1330, 1370, 1410, 1450, 1490, 1530, 1570, 1610 nm/ TX 1270, 1310, 1350, 1390, 1430, 1470, 1510, 1550, 1590 nm; es un dispositivo CWDM pasivo y una caja LGX enchufable, se puede enchufar en un rack 1u de 2 ranuras, admite 9 canales de diferencia comercial en una fibra óptica para transmisión punto a punto bidireccional.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.
Puerto multiplexor/demultiplexor CWDM de fibra única de 9 canales (18 ondas), 1270-1610 nm, LC/UPC, caja LGX enchufable y rack 1U de 4 ranuras
The single fiber 9channels(18 waves) CWDM MUX DEMUX is designed by FIBERWDM, A side’s waves are : RX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm/ TX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm, and B side’s waves are: RX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm/ TX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm; it is passive CWDM device and plug-in LGX box, can plug in 2slot 1u rack, support 9channels difference business in one optical fiber for bi-direction point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.
Product Panel

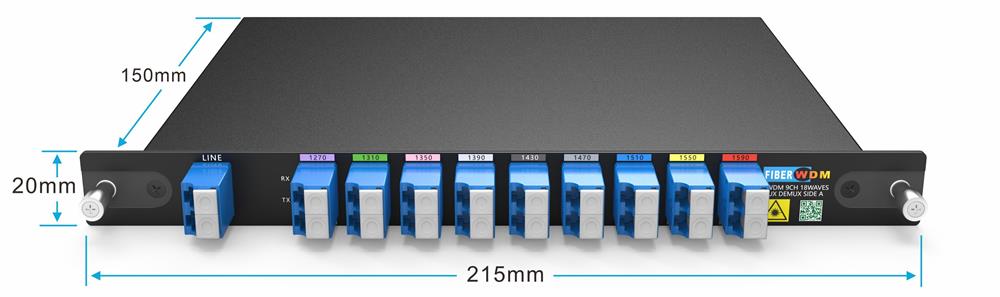

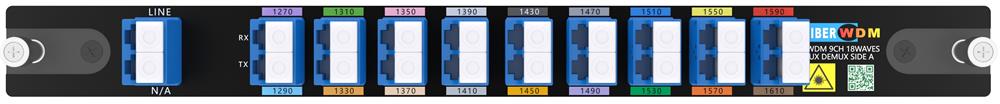

Side A Single Fiber 9CH 18Waves CWDM MUX/ DEMUX

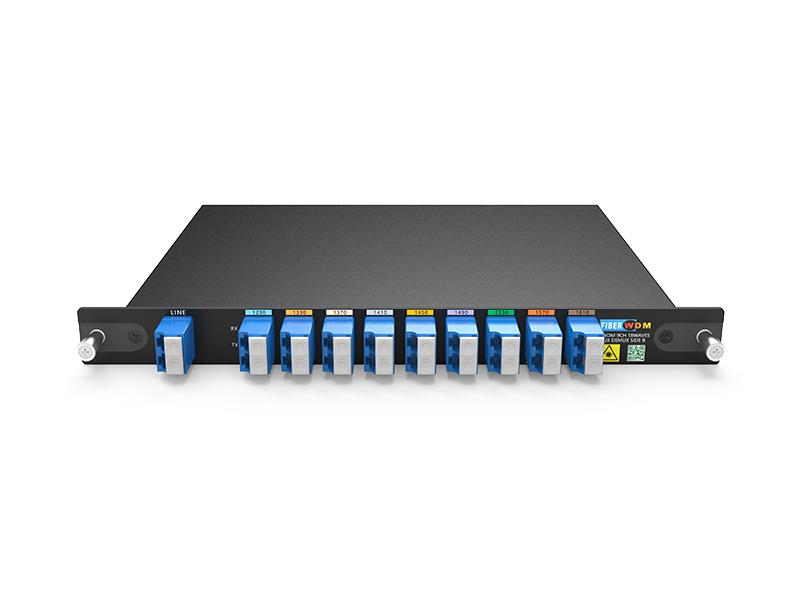

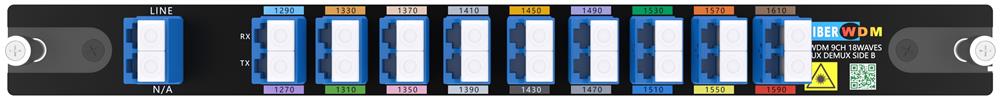

Side B Single Fiber 9CH CWDM MUX/ DEMUX
Line Link

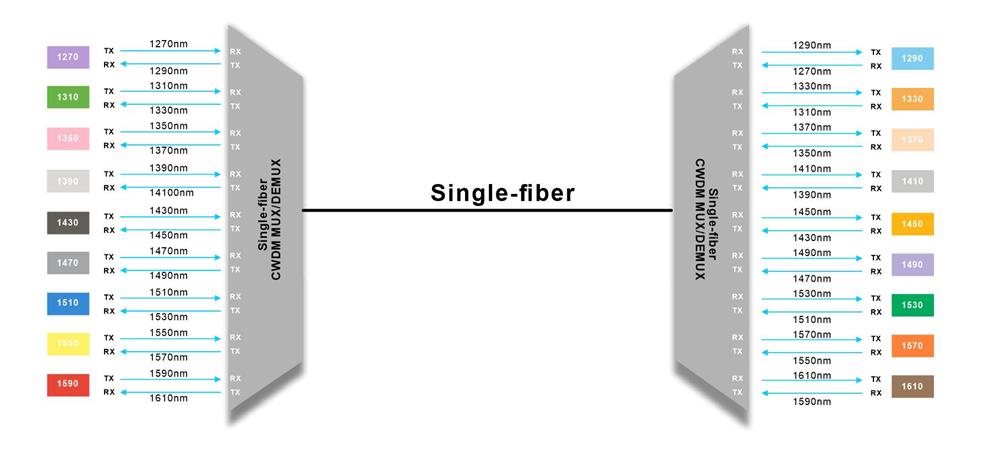

9CH CWDM MUX DEMUX Single fiber transmission
9Channels (18 waves) CWDM MUX/ DEMUX,should be used in pairs, which transmits and receives different wavelengths, support 9 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.
Product Specification
| Wavelength | 1270-1610nm | Channel Spacing | 20nm |
| Channel Passband | ±6.5nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss |
Regular :≤ 5.4dB (With 8 Skip 0: ≤ 2.5dB) |
Link Loss(A+B) |
Regular :≤ 6.2dB (With 8 Skip 0: ≤ 3.3dB) |
|
Center Wavelength Accuracy |
±0.05nm | Return Loss | ≥ 45dB |
| Directivity | ≥ 45dB |
Polarization Mode Dispersion |
≤ 0.1ps |
| Polarization Dependent Loss | ≤ 0.3dB | Channel Isolation |
Adjacent ≥30dB
Non-adjacent ≥ 45dB |
| Connector | LC/UPC | Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX Box: 0.5KG 4slot 1U Rack: 2.5KG |
Dimensions (HxWxD) |
LGX Box: 215*150*20mm 1U Rack : 440*160*44mm |
Note: Specified with connectors.
Package Information

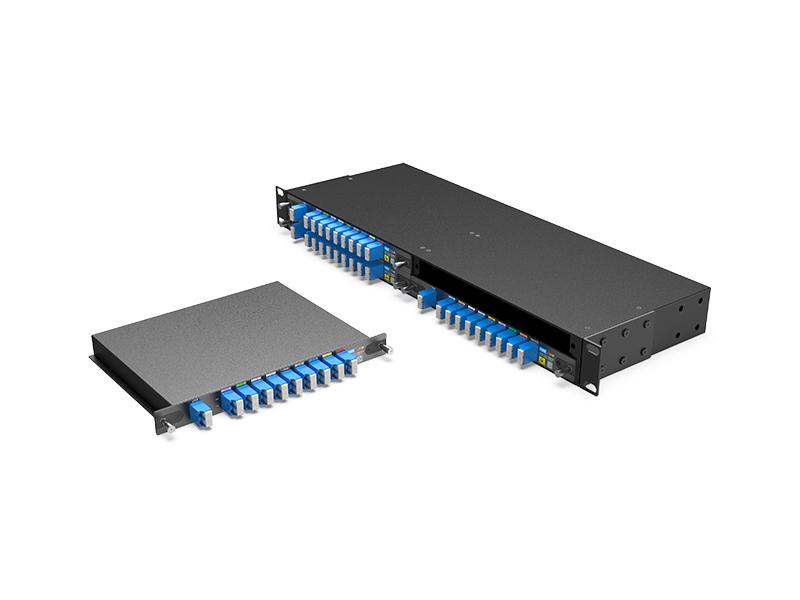

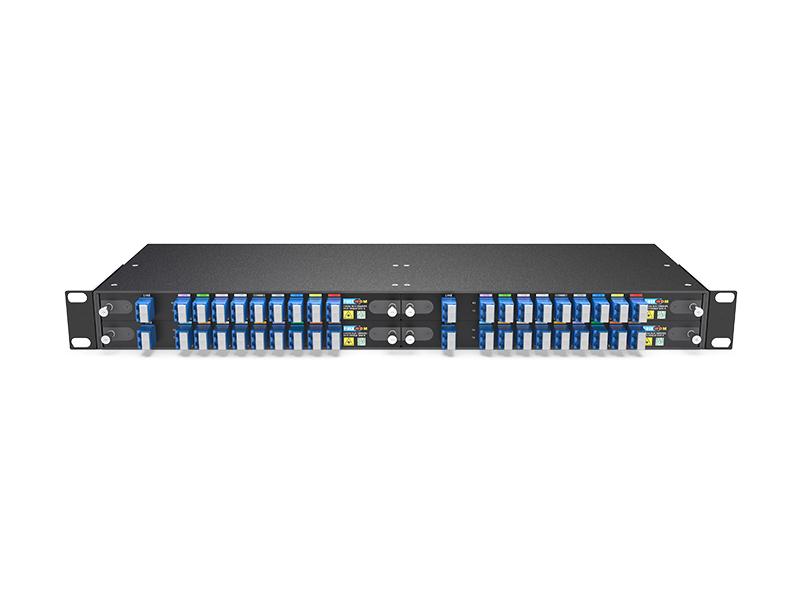

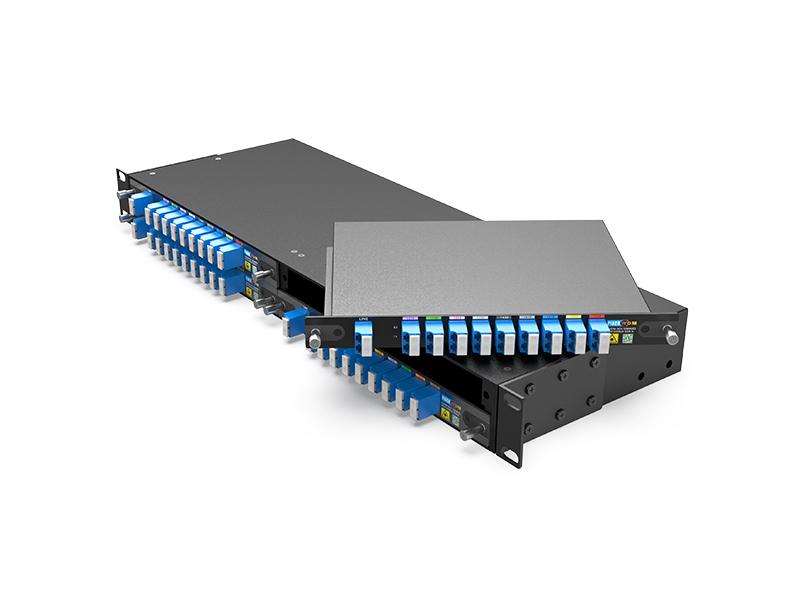

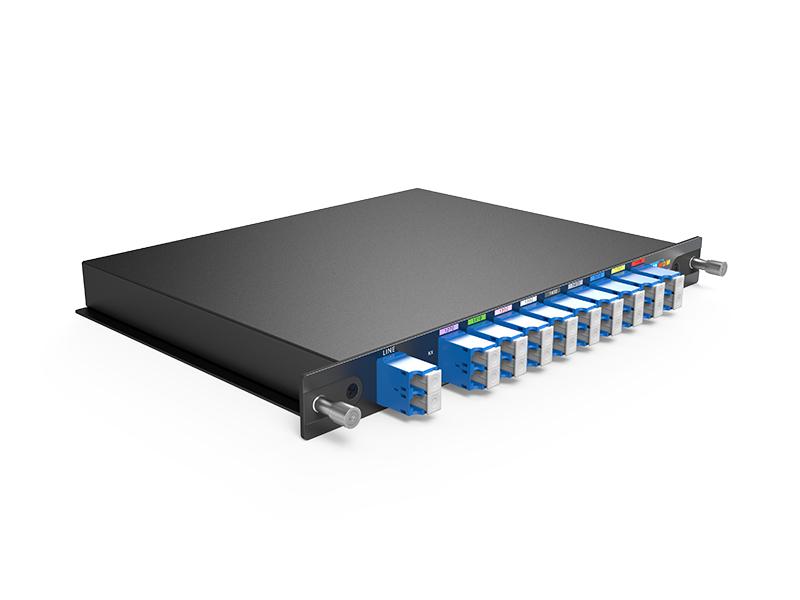

Plug-in LGX Box

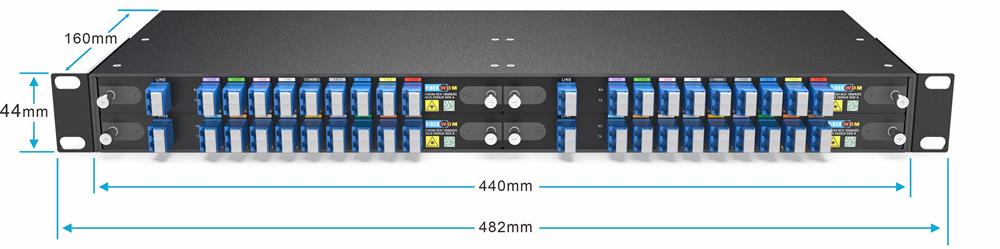

4-Slot 1U Rack for LGX BOX
Order Information
| Product No. | Product description |
| CM18-LGX01-2761-A | CWDM MUX /DEMUX 9CH 18waves(RX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm/ TX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm ) , Single fiber, LC/UPC , Plug-in LGX Box, IL≤ 5.4dB |
| CD18-LGX01-2761-B | CWDM MUX /DEMUX 9CH 18waves(RX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm/ TX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box IL≤ 5.4dB |
| CM18-LGX01-27S61-A | CWDM MUX /DEMUX 9CH 18waves(RX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm/ TX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box, IL ≤ 2.5dB |
| CD18-LGX01-27S61-B | CWDM MUX /DEMUX 9CH 18waves(RX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm/ TX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box, IL ≤ 2.5dB |
| 1U02-4LGX | 19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note: We Support Customized Design, please contact us by email.
